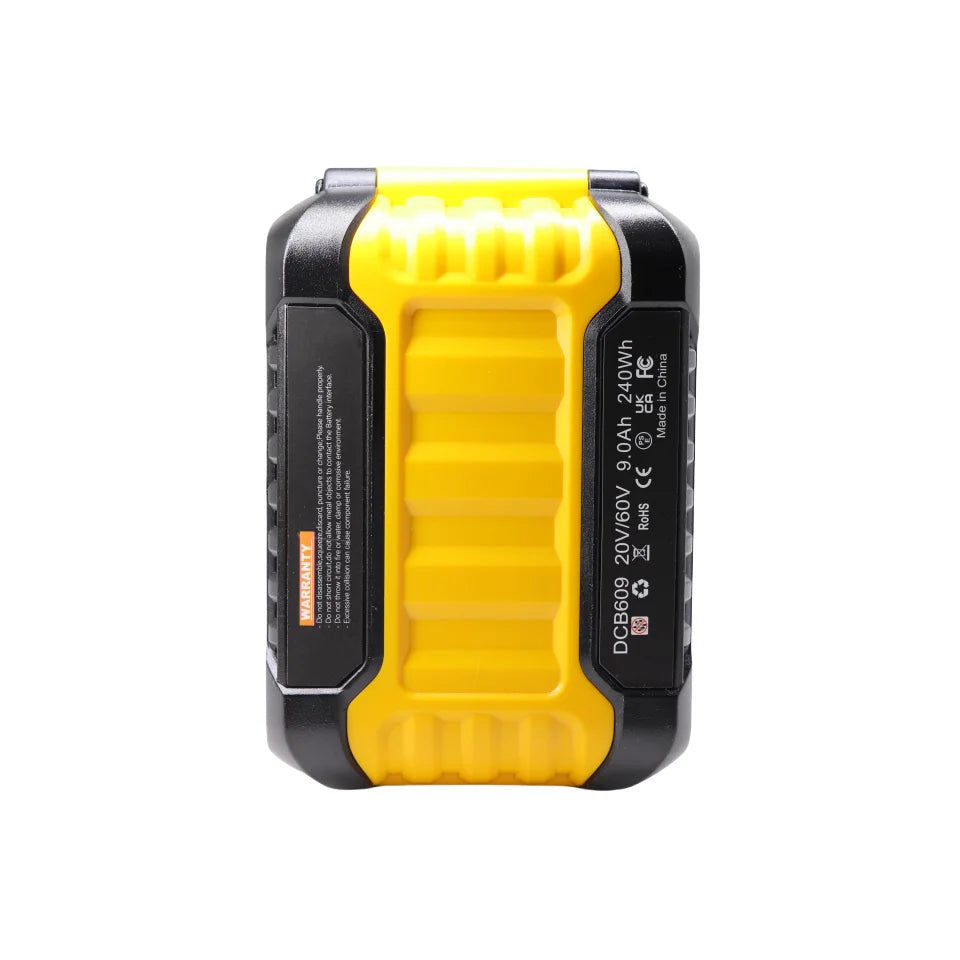

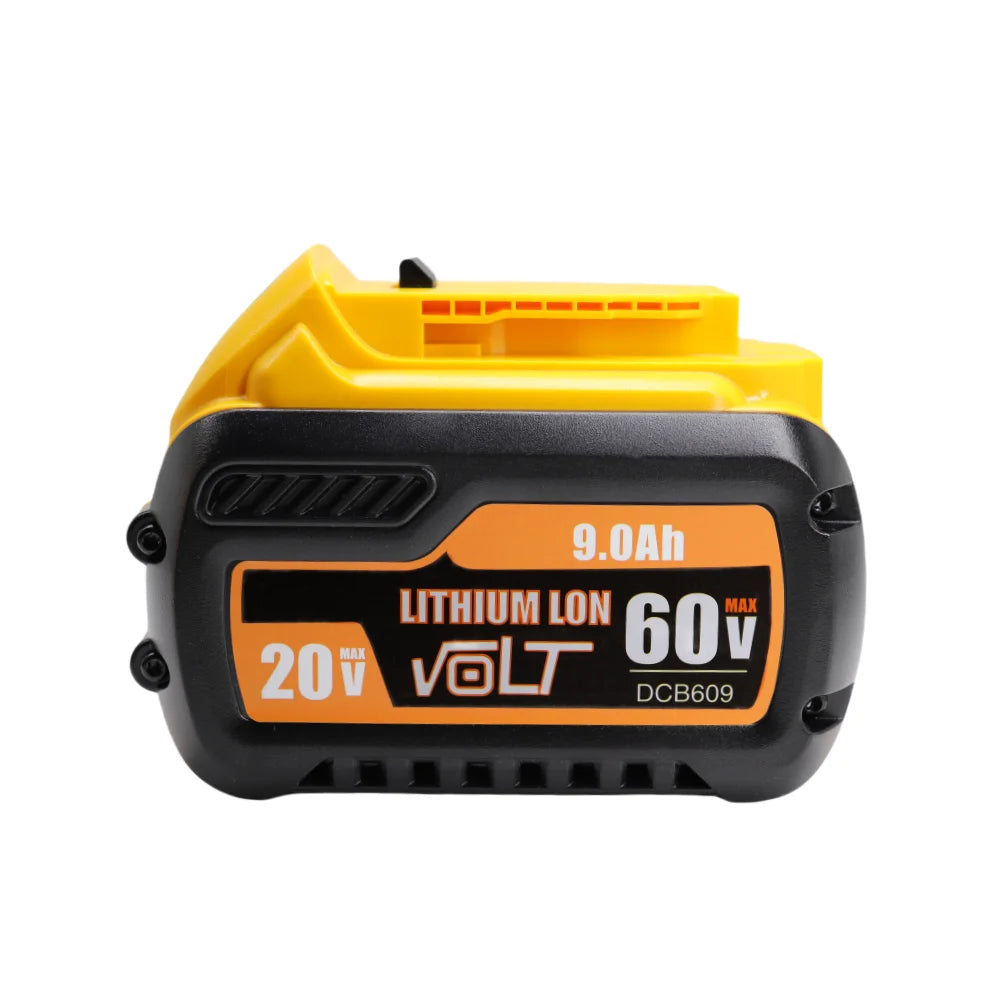

DCB609 Battery Plastic Case + PCB Protection for DeWalt 20V/60V

Overview

The DCB609 Lithium Battery Plastic Case is a durable housing with an integrated PCB charging protection circuit. Designed for DeWalt 20V and 60V battery systems, it provides reliable protection and organized enclosure for DCB606 and DCB612 batteries. This enclosure helps safeguard your battery’s circuitry from short circuits, overcharging, and physical damage while keeping wiring neat and secure.

Key Features

• Compatibility: Fits DeWalt 20V/60V batteries, including models DCB606 and DCB612.

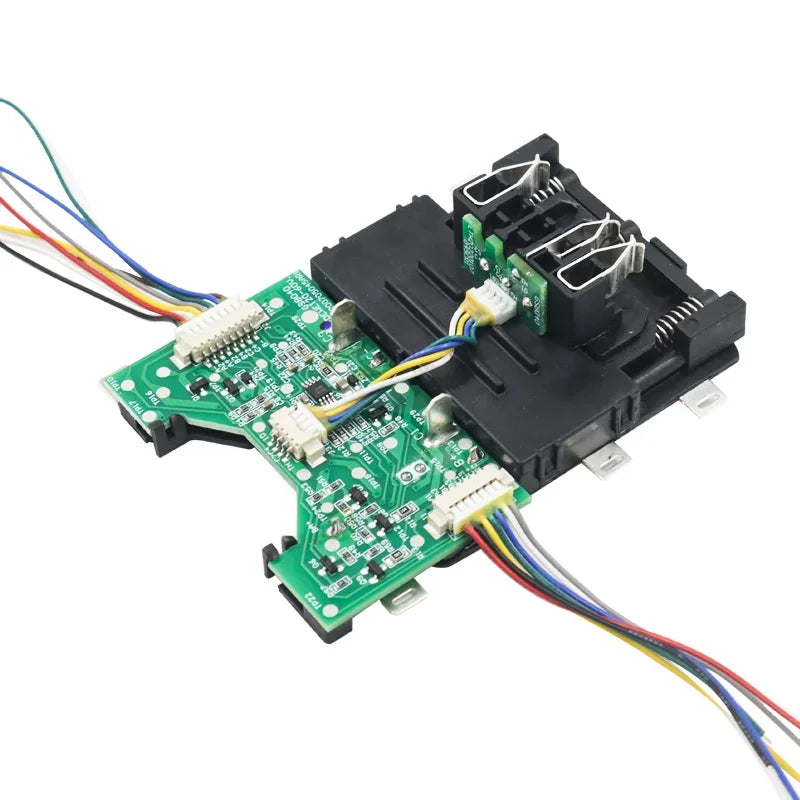

• Integrated Protection: Built-in charging protection PCB guards against overcharge, overcurrent, and short circuits.
• Durable Housing: Robust plastic case that shields internal components from impacts and dust.
• Compact Design: Slim enclosure that fits standard tool battery configurations without bulk.
• Easy Integration: Simple assembly with standard hardware and clear mounting points.
• Versatile Use: Ideal for custom battery packs, replacement housings, or DIY power projects.

Specifications

• Model: DCB609
• Material: Durable plastic case

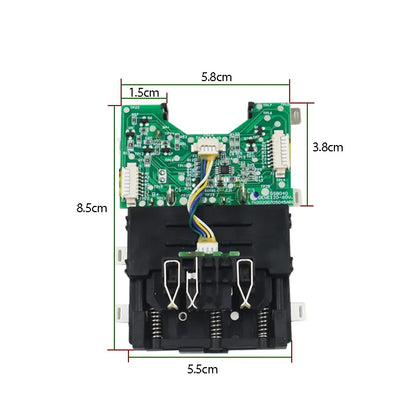

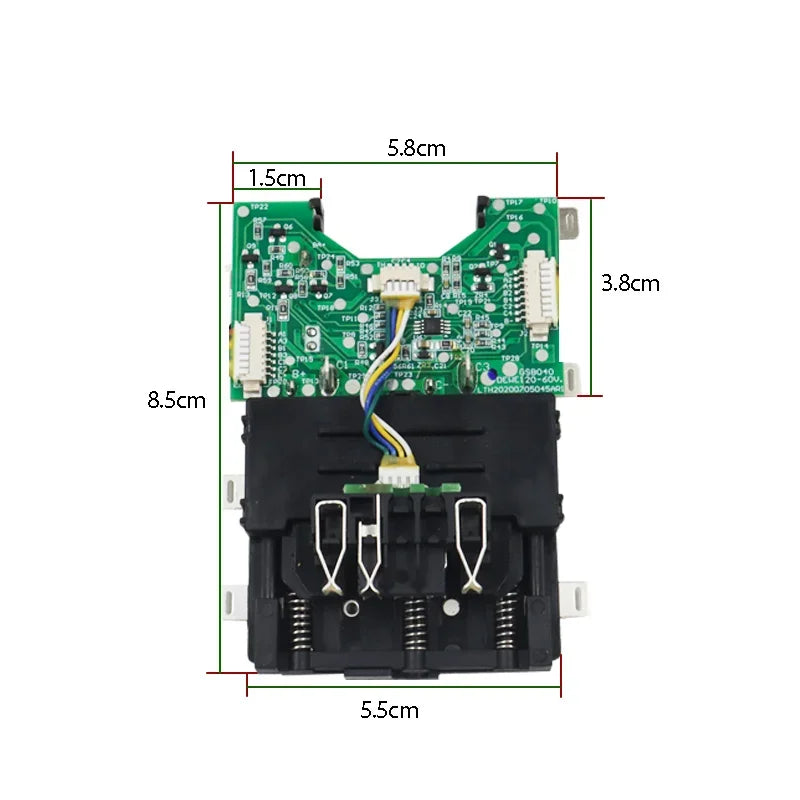

• Protection: PCB-based charging protection circuit
• Voltage Range: 20V and 60V DeWalt battery systems
• Compatible Batteries: DCB606, DCB612
• Application: Battery housing, enclosure, and protection for DeWalt packs

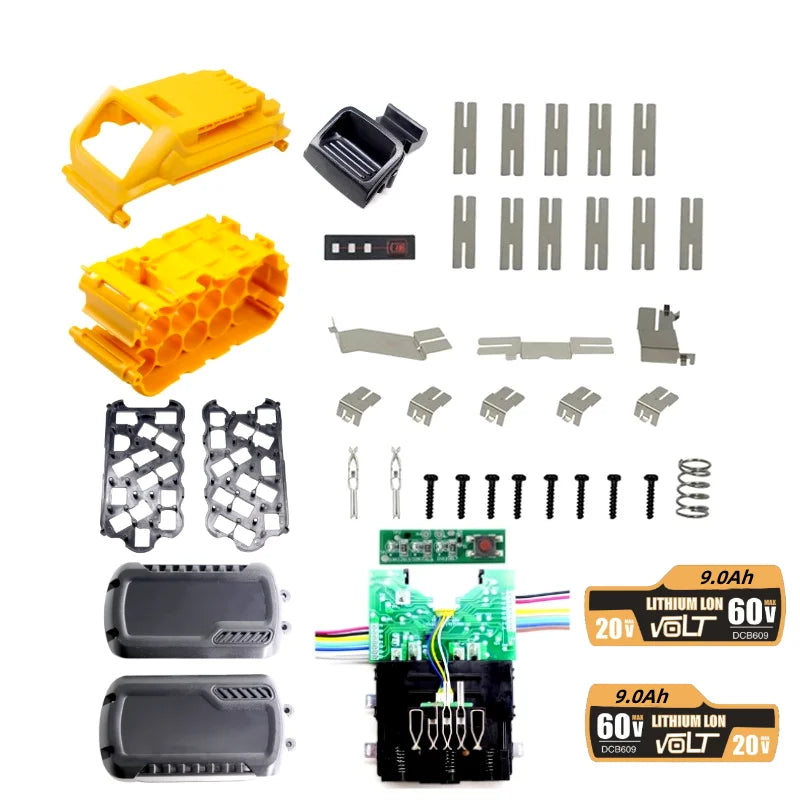

What’s Included

• DCB609 plastic battery case
• Integrated protection PCB (built-in)
• Mounting hardware (where applicable)

Benefits

• Enhanced Safety: Reduces risk of overcharge and short circuits.
• Reliability: Stable protection improves battery longevity.
• Organization: Keeps components neatly contained and easy to service.
• Versatility: Suitable for DIY builds, battery replacements, or custom packs.

How to Use

1. Align the battery pack with the housing’s connectors.
2. Secure the PCB protection circuit according to the provided mounting points.
3. Close the case and ensure all wiring is neatly routed.
4. Test the charging protection system before full deployment.

Installation Tips

• Verify compatibility with your specific DeWalt battery model before installation.
• Use proper insulation and route wires to avoid pinching or interference with moving parts.
• If upgrading an existing pack, double-check connector polarity and ratings.

Care and Maintenance

• Keep the case dry and away from extreme temperatures.
• Regularly inspect mounting hardware and connectors for signs of wear.
• Clean dust or debris from the exterior to maintain airflow and cooling.

Suitable Use Scenarios

• Replacing a damaged battery housing in DeWalt 20V/60V packs.
• Building custom battery assemblies for DIY projects.
• Upgrading protection in existing DeWalt battery systems.
